Water treatment plants are critical infrastructure for ensuring safe, clean water supply and efficient wastewater treatment. Among the numerous components that keep these facilities running smoothly, large-diameter gate valves play an irreplaceable role—they regulate the flow of raw water, treated water, wastewater, and sludge in main pipelines, ensuring reliable isolation and minimal pressure loss. Choosing the right large-diameter gate valve (typically DN200 and above) is not just a matter of equipment selection; it directly impacts operational efficiency, maintenance costs, system safety, and the long-term sustainability of the water treatment plant. This guide breaks down the key factors, technical considerations, and best practices for water treatment large diameter gate valve selection, helping plant engineers, procurement managers, and operators select the optimal large-diameter gate valve for water treatment plant needs.

1. Understand the Core Role of Large-Diameter Gate Valves in Water Treatment

Before diving into selection criteria, it’s essential to clarify why large-diameter gate valves are indispensable in water treatment plants. Unlike butterfly valves or ball valves, large-diameter gate valves are designed for on/off isolation rather than throttling, making them ideal for main pipelines where full-bore flow and minimal head loss are critical. They are commonly used in raw water intake lines, treated water distribution mains, sludge handling systems, and pump isolation points—applications where reliable sealing, corrosion resistance, and durability of a high-quality large-diameter gate valve for water treatment plant are non-negotiable.

Key functions of large-diameter gate valves in water treatment include: isolating pipeline sections for maintenance, preventing backflow in critical systems, controlling the flow of high-volume fluids, and withstanding the harsh conditions of wastewater and chemical-treated water. A poorly selected large-diameter gate valve can lead to leaks, corrosion, frequent downtime, and increased energy costs—making proper water treatment large diameter gate valve selection a priority for plant efficiency.

2. Key Selection Factors for Large-Diameter Gate Valves

Selecting the right large-diameter gate valve requires a holistic approach, considering pipeline conditions, fluid characteristics, operational demands, and industry standards—all critical for effective water treatment large diameter gate valve selection. Below are the most critical factors to evaluate for choosing the best large-diameter gate valve for water treatment plant use:

2.1 Match Valve Size and Pressure Rating to Pipeline Specifications

The first step in water treatment large diameter gate valve selection is ensuring the valve’s size and pressure rating align with the plant’s pipeline parameters. For water treatment plants, large-diameter gate valves typically range from DN200 to DN3000, with common sizes including DN300, DN400, DN600, and DN1200—making DN200-DN3000 gate valve for water plant the most sought-after range. The valve size must match the pipeline diameter to avoid flow restrictions, pressure buildup, or excessive wear of the large-diameter gate valve.

Pressure rating is equally critical for a reliable large-diameter gate valve for water treatment plant: most water treatment applications require valves with PN10, PN16, or Class 150 ratings, while high-pressure systems (e.g., pump discharge lines) may need PN25 or higher. Always verify the maximum operating pressure (MOP) and temperature of the pipeline—large-diameter gate valves must be rated to handle these conditions without failure. For example, a 66-inch (DN1650) large-diameter gate valve suitable for Class 150 pipelines is ideal for high-volume raw water intake lines, providing reliable isolation for DN1650 systems and meeting water treatment large diameter gate valve selection standards.

2.2 Choose Materials Based on Fluid Characteristics

The fluid being handled—whether raw water, treated water, wastewater, or sludge—dictates the large-diameter gate valve material selection, a key part of water treatment large diameter gate valve selection. Corrosion resistance, abrasion resistance, and compatibility with water treatment chemicals (e.g., chlorine, alum) are key considerations for choosing a durable large-diameter gate valve for water treatment plant:

• Valve Body Materials: Ductile iron with fusion-bonded epoxy (FBE) coating is the most common choice for clean and slightly turbid water, offering a balance of durability and corrosion resistance for a cost-effective large-diameter gate valve for water treatment plant. For corrosive industrial wastewater (pH 0-14), a corrosion-resistant gate valve for wastewater (e.g., stainless steel 2205 duplex steel or fluorine-lined valves) is recommended to resist acid and alkali damage. Carbon steel is suitable for medium-to-high pressure large-diameter gate valve applications, while alloy steel may be used for extreme conditions in water treatment large diameter gate valve selection.

• Sealing Surface Materials: Resilient seats (e.g., EPDM) are ideal for low-temperature, low-pressure clean water systems, providing a tight seal with a leakage rate of less than 0.01% for a reliable large-diameter gate valve for water treatment plant. Metal seals (e.g., 1Cr13 stainless steel overlay with HRC 35-45 hardness) are required for high-temperature, high-pressure, or solids-containing media (e.g., sludge) to prevent wear and leakage, a key consideration in water treatment large diameter gate valve selection.

• Stem Materials: Stainless steel stems are preferred for most water treatment applications, as they resist corrosion and ensure smooth operation of the large-diameter gate valve. For harsh wastewater environments, duplex stainless steel stems offer enhanced durability, making them a top choice in large-diameter gate valve material selection for wastewater treatment plants.

2.3 Select the Right Gate Valve Type for the Application

Large-diameter gate valves come in several types, each designed for specific use cases in water treatment—choosing the right type is a critical step in water treatment large diameter gate valve selection. The most common types of large-diameter gate valve for water treatment plant include:

• Wedge Gate Valves: The most widely used type of large-diameter gate valve for water treatment, featuring a wedge-shaped gate that presses tightly against the seat for a tight seal. They are suitable for high-pressure applications and bidirectional flow, making them ideal for main pipelines and pump isolation— a top choice in water treatment large diameter gate valve selection.

• Parallel Slide Gate Valves: Designed with parallel gates, these large-diameter gate valves are easier to open and close, with less risk of jamming under high pressure. They are ideal for applications where frequent operation is required, a key consideration in water treatment large diameter gate valve selection.

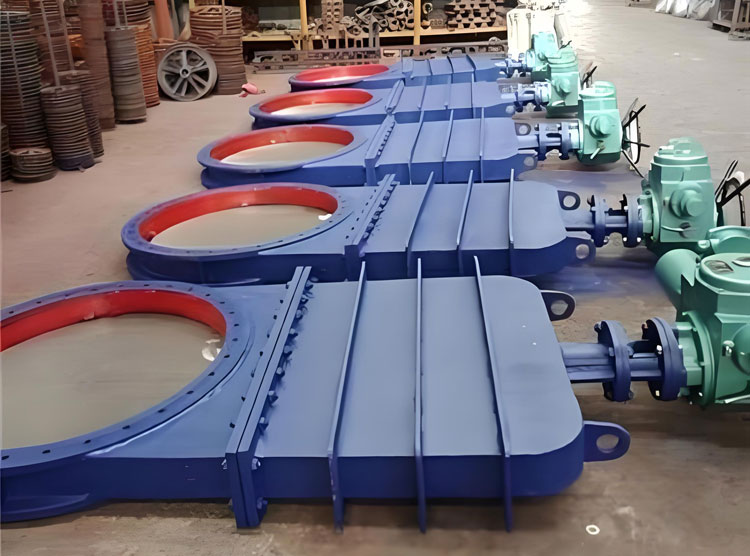

• Knife Gate Valves: A specialized large-diameter gate valve for water treatment, specifically designed for sludge, wastewater with high solids content, or media containing fibers. As a top knife gate valve for sludge handling, their sharp gate can cut through impurities (up to 1/3 the pipe diameter), reducing clogging and lowering failure rates by up to 75%—a must-have in water treatment large diameter gate valve selection for sludge systems.

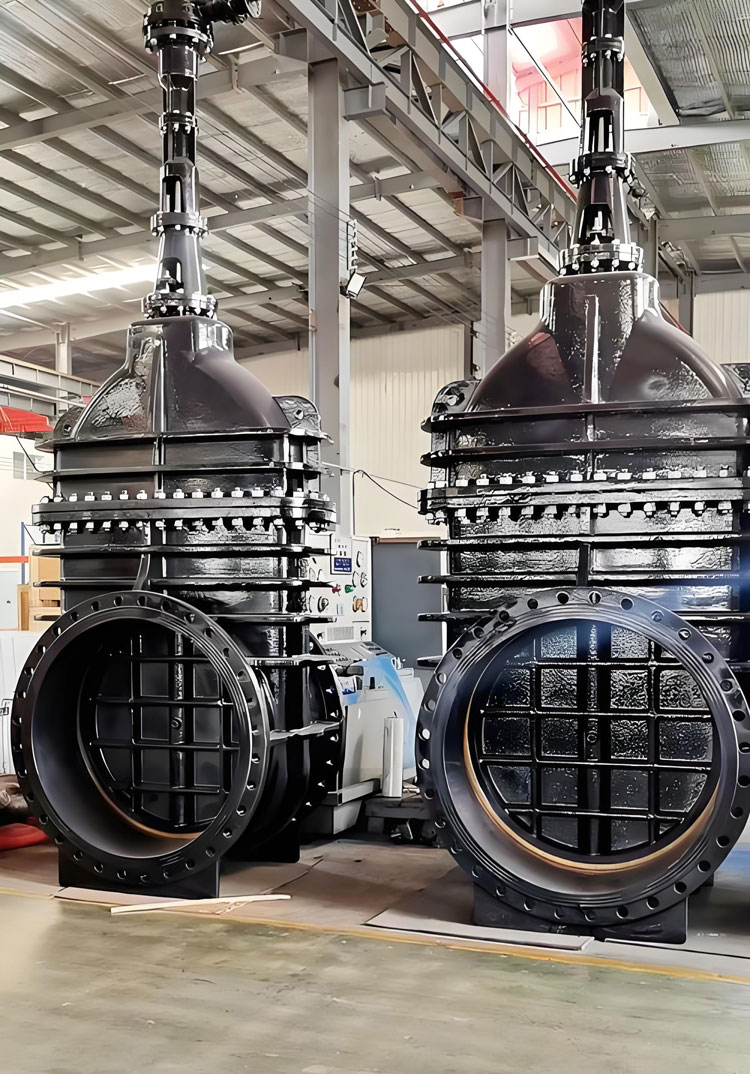

• Rising Stem (OS&Y) vs. Non-Rising Stem (NRS) Gate Valves: Rising stem large-diameter gate valves provide a visible indicator of open/closed position, making them suitable for pump rooms and accessible areas. Non-rising stem large-diameter gate valves save space, making them ideal for underground pipe corridors or confined spaces (e.g., valve chambers in raw water intake stations)—both are key options in water treatment large diameter gate valve selection.

2.4 Evaluate Actuation Methods

Large-diameter gate valves can be operated manually or automatically, depending on the application’s accessibility and operational needs—another critical factor in water treatment large diameter gate valve selection. Choosing the right actuation method ensures optimal performance of the large-diameter gate valve for water treatment plant:

• Manual Operation: Suitable for small to medium large-diameter valves (DN200-DN400) in accessible locations, such as above-ground pipelines. Bevel gear drives are often used to reduce the torque required for operation, making manual control easier for larger valves (e.g., 66-inch bevel gear drive gate valves)—a practical option in water treatment large diameter gate valve selection for small to medium systems.

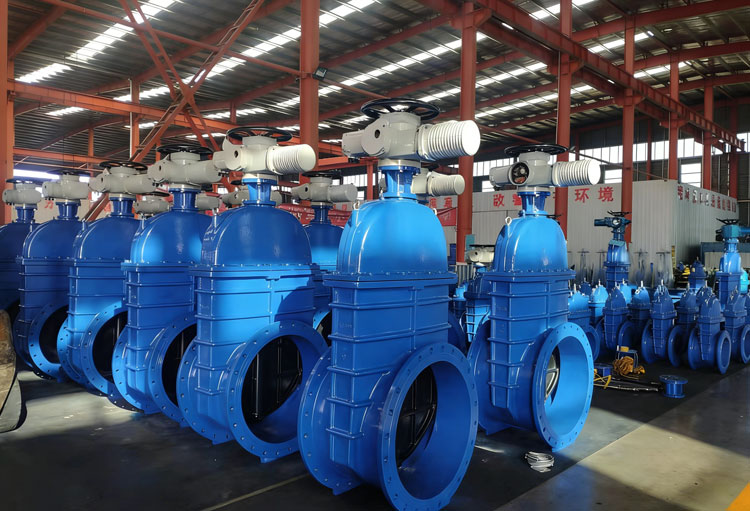

• Automated Actuation: An automated large-diameter gate valve for water treatment is recommended for large valves (DN500 and above), remote locations, or systems requiring precise control. Electric actuators are the most common in water treatment plants, offering remote operation, position feedback, and integration with plant control systems (SCADA). Pneumatic actuators are ideal for hazardous environments, while hydraulic actuators are used for very large valves (DN1200+) requiring high torque—all key options in water treatment large diameter gate valve selection for automated systems.

2.5 Comply with Industry Standards

Compliance with industry standards ensures valve quality, performance, and compatibility with water treatment systems— a non-negotiable step in water treatment large diameter gate valve selection. Key standards to consider for a high-quality large-diameter gate valve for water treatment plant include:

• AWWA C509/C515: Standards for resilient-seated and metal-seated gate valves in water supply systems, critical for selecting a reliable large-diameter gate valve for water treatment plant (an AWWA C515 gate valve for water plant is a top choice for metal-seated applications).

• BS 5163 and DIN 3352: European standards for gate valve design and performance, ensuring compatibility of large-diameter gate valves in international water treatment projects.

• API 6A: For high-pressure gate valves used in specialized water treatment applications (e.g., industrial wastewater with high pressure), a key standard in water treatment large diameter gate valve selection for high-pressure systems.

• ISO 9001: Quality management system certification for valve manufacturers, ensuring consistent production and quality control of large-diameter gate valves for water treatment plants.

3. Common Mistakes to Avoid in Selection

Even with careful planning, common mistakes can lead to poor large-diameter gate valve performance and increased costs—avoiding these pitfalls is critical for effective water treatment large diameter gate valve selection. Steer clear of these errors when choosing a large-diameter gate valve for water treatment plant:

• Oversizing or Undersizing Valves: Oversized large-diameter gate valves increase costs and reduce flow control precision, while undersized valves cause pressure loss and premature wear. Always match the valve size to the pipeline’s flow rate and diameter— a key rule in water treatment large diameter gate valve selection for DN200-DN3000 gate valve for water plant.

• Ignoring Corrosion Risks: Using standard materials for corrosive media (e.g., industrial wastewater) leads to premature failure of the large-diameter gate valve. Always test fluid pH, chemical content, and solids concentration before selecting materials—critical for choosing a corrosion-resistant gate valve for wastewater in water treatment large diameter gate valve selection.

• Neglecting Maintenance Access: Large-diameter gate valves installed in hard-to-reach areas (e.g., underground valve chambers) require regular maintenance—ensure the valve design allows for easy disassembly, part replacement, and inspection. Valves with bolted bonnet designs are preferred for easy maintenance access, a practical consideration in water treatment large diameter gate valve selection.

• Choosing the Wrong Valve Type for Throttling: Large-diameter gate valves are not designed for throttling—using them for flow modulation causes excessive wear, vibration, and leakage. Use butterfly valves for throttling applications instead— a key distinction in water treatment large diameter gate valve selection.

4. Best Practices for Long-Term Performance

Once the right large-diameter gate valve for water treatment plant is selected through proper water treatment large diameter gate valve selection, proper installation, maintenance, and operation are critical to maximizing its lifespan and ensuring optimal performance of the large-diameter gate valve:

• Proper Installation: Ensure the large-diameter gate valve is installed correctly (horizontal or vertical) with proper alignment to the pipeline. For horizontal pipelines, install the valve with the stem facing upward to prevent debris buildup. In valve chambers, ensure the valve assembly is at least 300 mm below the chamber cover for safe inspection and maintenance—key for prolonging the life of a large-diameter gate valve for water treatment plant.

• Regular Maintenance: Conduct periodic inspections (quarterly or annually) to check for leaks, corrosion, and wear of the large-diameter gate valve. Lubricate stems and actuators regularly, replace worn seals, and clean valves handling sludge or solids to prevent clogging—especially important for knife gate valve for sludge handling. For fully open large-diameter gate valves (e.g., raw water intake lines), reverse the stem 1/2-1 turn after reaching the fully open position to prevent locking due to temperature changes.

• Train Operators: Ensure plant operators are trained to operate the large-diameter gate valve correctly—avoid forcing the valve open/closed, which can damage the gate or seat. For automated large-diameter gate valve for water treatment, train operators to monitor position feedback and troubleshoot actuator issues—critical for maintaining the valve’s performance after water treatment large diameter gate valve selection.

5. Conclusion: Choosing the Right Valve for Your Water Treatment Plant

Selecting the most suitable large-diameter gate valve for a water treatment plant requires a systematic approach—aligning valve size, material, type, and actuation with pipeline conditions, fluid characteristics, and operational needs through thorough water treatment large diameter gate valve selection. By prioritizing corrosion resistance (e.g., choosing a corrosion-resistant gate valve for wastewater), compliance with industry standards (e.g., AWWA C515 gate valve for water plant), and long-term maintenance, plant managers can reduce downtime, lower maintenance costs, and ensure the reliable operation of critical water treatment systems with a high-quality large-diameter gate valve for water treatment plant.

Whether you’re upgrading an existing plant or building a new facility, partnering with a reputable valve manufacturer (specializing in water treatment applications) can provide valuable guidance—ensuring you select a large-diameter gate valve that meets your specific requirements and delivers long-term performance. Remember, the right large-diameter gate valve for water treatment plant is not just an equipment purchase; it’s an investment in the efficiency, safety, and sustainability of your water treatment plant, and proper water treatment large diameter gate valve selection is the key to making that investment count.
