In large-scale industrial systems and infrastructure projects, fluid control safety is crucial to ensuring stable operation, preventing equipment damage, and avoiding potential safety hazards. As a key automatic fluid control component, the large-diameter check valve plays an irreplaceable role in pipelines with large flow rates and high demands for one-way fluid flow. This article systematically explains the definition, working principle, key characteristics of large-diameter check valves, and focuses on their typical application scenarios in various industries, providing professional references for engineers, industry practitioners, and decision-makers.

What Is a Large-Diameter Check Valve?

A large-diameter check valve, also known as a large-diameter non-return valve or one-way valve, is an automatic valve designed to control one-way fluid flow in large-scale piping systems. It is typically defined by a nominal diameter (DN) of 300mm (12 inches) or larger, with common specifications ranging from DN300 to DN3000, and ultra-large models reaching up to DN4000 for special industrial needs—such as the recently verified 2000mm ultra-large diameter axial flow check valve used in ethylene plants in China. Unlike active control valves (e.g., butterfly valves, gate valves) that require external actuators, the large-diameter check valve operates automatically relying on the pressure difference of the fluid itself, without manual or electrical control, making it simple, reliable, and low-maintenance. This automatic operation is rooted in its core working principle, which ensures seamless one-way flow control without external intervention.

The core working principle of a large-diameter check valve is straightforward and automatic, relying on the fluid's own pressure difference without the need for external actuators (manual, electrical, or hydraulic)—a key feature that distinguishes it from active control valves. Its sole purpose is to enforce one-way fluid flow, automatically allowing forward passage while blocking reverse flow to protect pipeline equipment and maintain system stability. When the forward fluid pressure exceeds both the reverse pressure and the valve’s inherent resistance—such as the weight of the valve disc or the tension of a built-in spring (for spring-loaded models)—the fluid exerts sufficient thrust to push the valve disc open. This design ensures unobstructed flow with minimal pressure loss, particularly for valves with streamlined flow channels that enhance hydraulic efficiency and reduce energy consumption. On the contrary, if the forward fluid pressure drops, ceases, or reverse flow occurs, the valve disc closes automatically under three combined forces: reverse fluid pressure, the disc’s own weight, and spring force (for spring-loaded variants). This tight closure against the valve seat completely halts reverse flow, guaranteeing the one-way movement of the fluid medium—a critical function for safeguarding both upstream and downstream equipment in large-scale industrial piping systems.

Complementing its reliable working principle, large-diameter check valves possess key characteristics that adapt to harsh industrial environments:

1. High structural strength: The valve body is usually made of cast steel (WCB, WC6), ductile iron, 316L stainless steel, duplex stainless steel, or nickel-aluminum bronze, with thickened wall design and reinforcing ribs to withstand high pressure (up to 10.0MPa) and large flow impact;

2. Excellent sealing performance: Adopting composite sealing structures (such as metal hard seal with Stellite alloy overlay or soft seal with PTFE, EPDM) to ensure zero or minimal leakage, meeting international standards such as ISO 10434;

3. Low flow resistance: Optimized streamlined flow channel and valve disc design reduce pressure loss, improving system energy efficiency—critical for large-flow pipelines where energy conservation is a priority;

4. Strong corrosion and wear resistance: Corrosion-resistant materials and anti-fouling coatings are used to adapt to corrosive media such as seawater, brine, and chemical fluids;

5. Diverse structural types: Common types include swing check valves, lift check valves, wafer check valves, and butterfly check valves, each tailored to different installation environments and working conditions, while all adhering to the same core working principle of automatic one-way flow control.

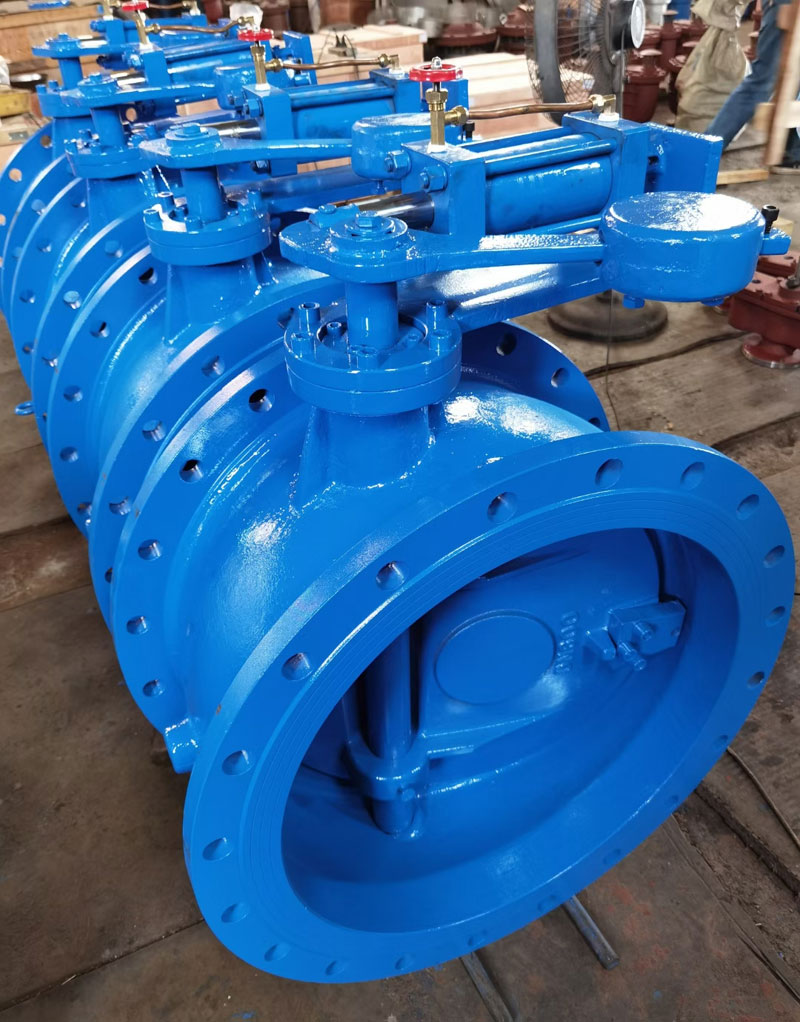

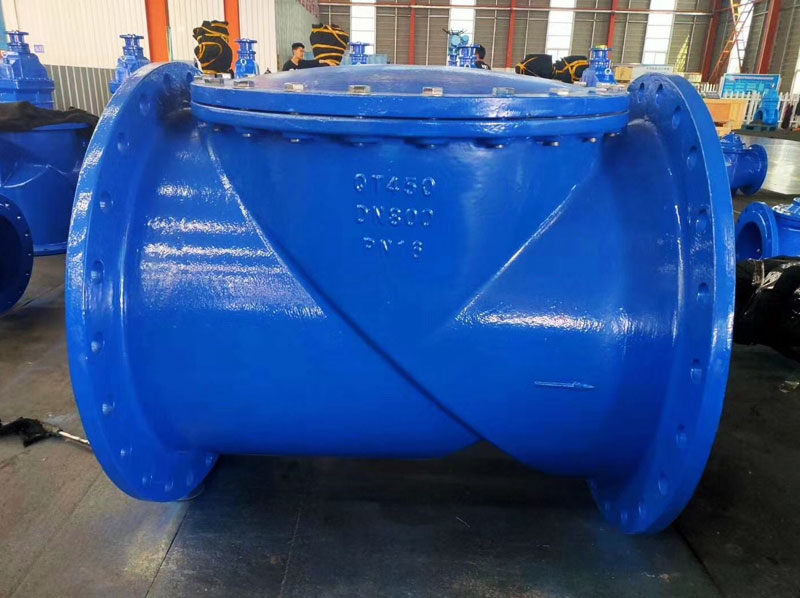

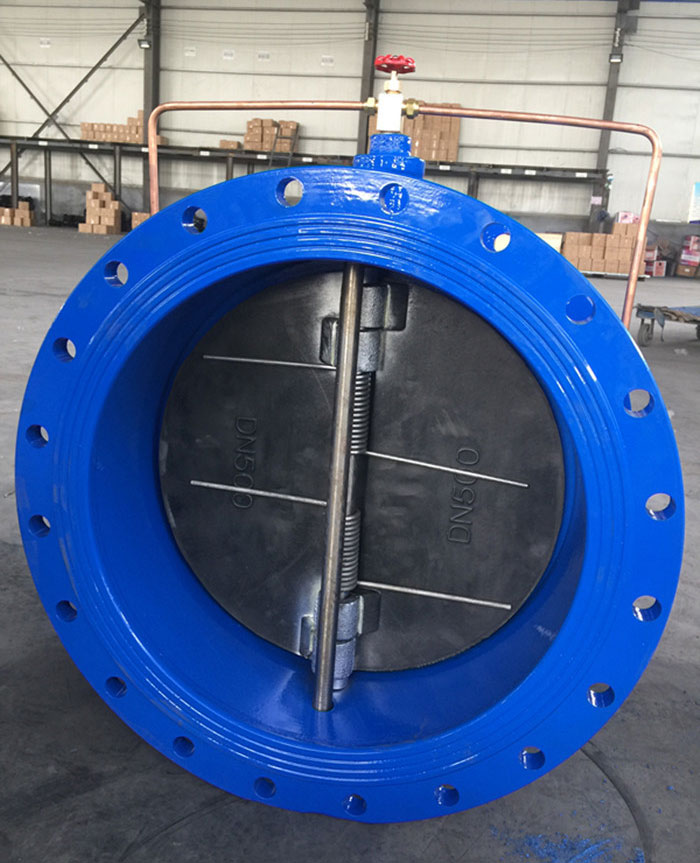

Common structural classifications of large-diameter check valves and their differences: Swing check valves rely on the valve disc rotating around the hinge to open and close, featuring small flow resistance and flexible installation (horizontal or vertical), suitable for large-diameter, low-pressure pipelines; Lift check valves use the vertical lifting of the valve disc to control flow, with excellent sealing performance but higher flow resistance, suitable for high-pressure, high-purity medium scenarios; Wafer check valves are compact and lightweight, clamped between pipeline flanges, suitable for space-constrained installations; Butterfly check valves adopt a disc-shaped valve core similar to butterfly valves, with minimal flow resistance and quick closing, ideal for low-pressure large-diameter water treatment pipelines. These structural variations ensure that large-diameter check valves can meet the diverse needs of different industrial scenarios.

Typical Application Scenarios of Large-Diameter Check Valves

Large-diameter check valves are widely used in various large-scale industrial systems and infrastructure projects, where one-way fluid flow control and system safety protection are required. Their application scenarios cover energy, water treatment, petrochemical, municipal engineering, and other fields, with specific use cases closely combined with the characteristics of each industry and the functional advantages of the valve itself.

1. Desalination Plants

Desalination plants (whether reverse osmosis RO or multi-effect distillation MED technology) rely heavily on large-diameter check valves to ensure the safety and efficiency of the entire water treatment process—especially in large-flow pipelines with DN300-DN1600 specifications. In seawater intake pipelines, large-diameter check valves are installed at the outlet of intake pumps to prevent seawater backflow when the pump stops, avoiding damage to the pump and other upstream equipment. In RO system high-pressure pipelines, check valves with corrosion-resistant materials (such as duplex stainless steel, nickel-aluminum bronze) are used to prevent high-pressure brine from flowing back into the pretreatment system, protecting RO membranes from damage caused by reverse pressure impact. In brine discharge pipelines, swing check valves or butterfly check valves are adopted to handle high-salinity, abrasive brine, ensuring stable one-way discharge and avoiding environmental pollution caused by brine backflow. For example, in large-scale desalination plants in the Middle East and Southeast Asia, large-diameter check valves with anti-cavitation and anti-fouling designs have become standard configurations to adapt to harsh high-salinity environments.

2. Petrochemical and Chemical Industry

The petrochemical and chemical industry is one of the core application fields of large-diameter check valves, where they are used in crude oil transportation, natural gas transmission, chemical reagent conveying, and ethylene plant pipelines. In crude oil pipelines (DN500-DN2000), large-diameter swing check valves are installed at the outlet of booster pumps to prevent crude oil backflow during pump shutdown, avoiding pipeline pressure surges and equipment damage. In ethylene plants, ultra-large diameter check valves (such as DN2000 axial flow models) are used in core compressor units, with optimized flow channel and sealing structures to reduce pressure loss and ensure stable operation of the compression system—recently, China’s first ultra-large diameter axial flow check valve completed engineering verification in Tianjin Nangan ethylene plant, filling the domestic technical gap in this field. In chemical production pipelines conveying corrosive media (such as acids, alkalis, and chemical solvents), large-diameter check valves made of corrosion-resistant alloys (such as Hastelloy, alloy C276) are used to prevent medium backflow and leakage, ensuring production safety and environmental protection.

3. Municipal Water Supply and Drainage Systems

In municipal water supply and drainage projects, large-diameter check valves are essential components for ensuring stable water supply and flood control and drainage. In large-scale water supply pumping stations (serving cities or industrial parks), check valves with DN600-DN1500 specifications are installed at the outlet of water pumps to prevent tap water from flowing back into the reservoir when the pump stops, ensuring continuous water supply to users. In urban drainage systems, especially in rainwater and sewage lifting stations, large-diameter wafer check valves or butterfly check valves are used to prevent sewage backflow, avoiding urban waterlogging and environmental pollution. In fire water systems, large-diameter check valves are installed in main pipelines to ensure that fire water flows unidirectionally to fire hydrants and sprinkler systems, preventing reverse flow that could affect fire fighting efficiency. Additionally, in municipal heating pipelines, check valves are used to prevent the backflow of hot water, ensuring stable heating supply.

4. Power Plants (Thermal, Hydropower, Nuclear Power)

Power plants have strict requirements for fluid control safety and stability, making large-diameter check valves widely used in boiler feedwater, condensate water, cooling water, and steam pipelines. In thermal power plants, large-diameter check valves (DN400-DN1200) are installed at the outlet of boiler feedwater pumps to prevent high-temperature and high-pressure feedwater from flowing back, protecting the feedwater pump and boiler from damage. In hydropower plants, check valves are used in water diversion pipelines and turbine outlet pipelines to prevent water backflow when the turbine stops, avoiding reverse rotation of the turbine. In nuclear power plants, large-diameter check valves with high sealing performance and radiation resistance are used in cooling water systems and reactor coolant pipelines, ensuring the safe operation of the nuclear power unit—these valves must meet strict international safety standards, with zero leakage and high reliability requirements. The valve body and internal components of power plant check valves are usually made of high-strength alloy steel to adapt to high-temperature, high-pressure, and high-radiation environments.

5. Water Conservancy and Irrigation Projects

In large-scale water conservancy and irrigation projects (such as reservoirs, canals, and irrigation districts), large-diameter check valves play a key role in water diversion and anti-backflow. In cross-river and cross-basin water diversion projects, check valves with DN800-DN2000 specifications are installed in main diversion pipelines to prevent water from flowing back to the original water source, ensuring the stability of the water diversion system. In agricultural irrigation systems, large-diameter check valves are used in pumping stations and main irrigation pipelines to prevent irrigation water from backflowing into the pump station, improving irrigation efficiency and protecting pumping equipment. In flood control projects, check valves are installed in drainage sluices and pump outlets to prevent floodwater from backflowing into urban or agricultural areas, reducing flood losses.

6. Marine and Offshore Engineering

Marine and offshore engineering (such as offshore oil platforms, offshore desalination plants, and ship systems) has harsh operating environments—high salinity, high humidity, and strong corrosion—placing high demands on the performance of large-diameter check valves. In offshore oil platforms, check valves are used in crude oil and natural gas transmission pipelines to prevent medium backflow, ensuring the safety of offshore production. In offshore desalination plants, large-diameter check valves made of corrosion-resistant materials (such as titanium alloy, nickel-aluminum bronze) are used in seawater intake and freshwater discharge pipelines to resist seawater corrosion and ensure stable operation of the desalination system. In large ship ballast water systems and cooling water systems, check valves are installed to prevent seawater backflow, protecting the ship’s power system and equipment from corrosion and damage.

Conclusion

As an essential automatic fluid control component, the large-diameter check valve is defined by its large nominal diameter, automatic one-way flow control, and high reliability, playing a critical role in protecting equipment, ensuring system stability, and preventing safety hazards. Its diverse structural types and excellent performance characteristics enable it to adapt to the harsh operating conditions of various industries, including desalination, petrochemical, municipal water supply and drainage, power generation, water conservancy, and marine engineering.

With the continuous development of industrialization and infrastructure construction, the demand for large-diameter check valves will continue to grow, and technological advancements will further optimize their performance—such as more corrosion-resistant materials, more efficient flow channel designs, and intelligent monitoring functions. As a core component ensuring fluid system safety, large-diameter check valves will continue to provide reliable support for the stable and efficient operation of various large-scale industrial systems and infrastructure projects, while their application scenarios will continue to expand with the emergence of new industrial needs.
